Product Description

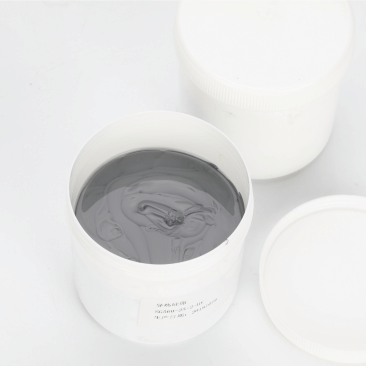

SG560-40 CPU thermal grease is a paste compound of thermal interface material that does not dry out; it can transfer heat from the heating device to the heat sink and the chassis. CPU thermal grease can still be insulated if the thermal metal oxide is filled. Thermal conductivity. SG560-40 CPU thermal grease has low permeability, good temperature resistance and low fluidity. It is also very stable at high temperatures. Even if the temperature reaches 150 °C, it will not crack due to drying. SG560-40 CPU thermal grease can be manually operated and screen printed.
Applications
◆ Power battery pack
◆ Vehicle navigator
◆ Optical precision equipment 、Camera equipmen
◆ Notebook computer
◆ Mobile and communication equipment
◆ Automotive engine control equipment
◆ High end industrial control and medical electronics
◆ Vehicle navigator
◆ Optical precision equipment 、Camera equipmen
◆ Notebook computer
◆ Mobile and communication equipment
◆ Automotive engine control equipment
◆ High end industrial control and medical electronics
Videos
Click here！
Product Parameters
| SG560-40 | ||
| Properties of products | Test Results | Test Criteria |
| Color | Gery | Visual |
| Main components | silicone grease | *** |
| Addition material | metallic oxide | *** |
| Viscosity 25℃ | 350K cps | Brookfield RVF,#7 |
| Density g/cm3 | 2.8 | *** |
| Applicate Temperature° F/℃ | (-49 to 392°F) (-45 to 200℃) | *** |
| Thermal Conductivity W/mK | 4.0 | ASTM D5470 |
| Volatilization（200℃，24H） | 0.14% | *** |
| Oil Bleeding（200℃，24H） | 3.60% | *** |
| Thermal Impedance (℃-in2/W)@50psi |
0.015 | ASTM D5470 |
| RoHS | PASS | IEC 62321 |
| Halogen | PASS | EN14582 |
| REACH | PASS | EN14372 |
Test fixtures using ASTM D5470. Recorded values include interface thermal resistance. These values are for reference only. The actual application performance is directly related to the applied surface roughness, flatness and pressure.
| SG series Thermal grease | ||||
| Sheen grease series | Thermal conductivity | Viscosity 25℃ | Thermal impendance( ℃-in2/W)@50psi) | Working temperature |
| SG560-10 | 1.0 W/mK | 150K cps | 0.25 | -45 - 150℃ |
| SG560-18 | 1.8 W/mK | 200K cps | 0.18 | -45 - 150℃ |
| SG560-25 | 2.5 W/mK | 220K cps | 0.14 | -45 - 150℃ |
| SG560-30 | 3.0 W/mK | 240K cps | 0.12 | -45 - 150℃ |
| SG560-40 | 4.0 W/mK | 350K cps | 0.015 | -45 - 150℃ |
| SG560-50 | 5.0 W/mK | 450K cps | 0.07 | -45 - 150℃ |
Customization Ability
About Us
Dongguan Sheen Electronic Technology Co., Ltd is a high-tech enterprise which dedicates to develop, produce and sale of thermal conductive materials and thermal insulation materials, For now the main products are thermally conductive pad, thermally conductive gel, thermal grease, phase change thermal grease, phase change thermal interface materials, thermally conductive tape, foam silicone sheet, thermal silicone adhesive, thermal insulation materials, they are widely used in cell phone, power supplies, LED lights, computers, automotive electronic, network communications, electrical and mechanical equipment, instrumentations, electrical and electronic fields and so on.
Our company is located in the famous Pearl River Delta Industrial Zone in Dalingshan Town, Dongguan City, Guangdong Province. We adhere to the concept of integrity, win-win cooperation, user-oriented and results-oriented, do our best to create value for customers, and do our best for the social development
