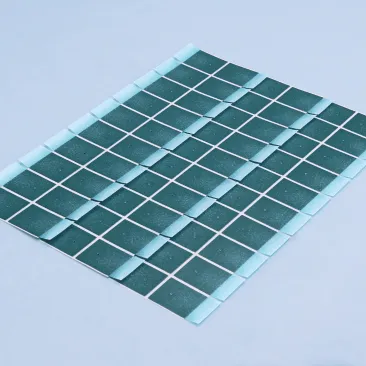

    SP-350P Phase Change Thermal pad 1.8W/mK

    Use Range:
    SP-350P PCM thermal pad is a thermally conductive phase change material having a softening temperature of 55-65℃ compressibility, The liquid phase of the material can fill interface irregularities with much higher efficiency than traditional gap filler.On the other hand, it is a solid at room temperature and can be handled easily during installation.

    Free Samples

    Product Description

    SP-350P PCM thermal pad is a PCM thermal pad having a softening temperature of 55-65℃ compressibility, The liquid phase of the material can fill interface irregularities with much higher efficiency than traditional gap filler.The minimum thickness can be reach 0.13mm,Polyimide reinforced.On the other hand, SP-350P PCM thermal padis a solid at room temperature and can be handled easily during installation.

    Applications



    ◆  High Frequency Microprocessors
    ◆  Notebook and Desktop PCs
    ◆  Computer Serves
    ◆  Memory Modules
    ◆  Cache Chips
    ◆  LED lighting




    Videos





    Click here！





    Product Parameters



    SP-350P
    Properties of products Test Results Test Method
    Color Green Green Visual
    Reinforcement Carrier Polyimide Polyimide ***
    Thickness (mm) 0.13-0.5 0.13-0.5 ASTM D374
    Film Tinckness(inch/mm) 0.025/0.050 0.025/0.050 ASTM D374
    （%）Elongation 40 40 ASTM D882A4
    Tensile Strength (MPa) 49 49 ASTM D882A4
    Continuous Use Temp (℃) 257 125 ***
    Phase Change Temp (℃) 55 55 ASTM D3418
    Dielectric Breakdown Voltage(Vac) 6000 8000 ASTM D149
    Dielectric Constant (1000 Hz) 4.5 4.5 ASTM D150
    Volume Resistivity (Ω) 1012 1012 ASTM D257
    Flame Rating V-0 V-0 UL 94
    Thermal Conductivity (W/m-K) 1.8 1.8 ASTM D5470
    RoHS PASS IEC 62321
    Halogen PASS EN14582
    REACH PASS EN14372

    SP series Thermal phase change pad
    Thermlal phase change pad series Thermal conductivity Phase cahnge temperature Remark
    SP205A-AL 3.0 W/mK 50℃ ~ 65℃ Coat aluminum foil
    SP205P 2.5 W/mK 50℃ ~ 65℃
    SP205A 3.0 W/mK 50℃ ~ 65℃
    SP350P 1.8 W/mK 50℃ ~ 65℃ Polymide reinforce



    Customization Ability



    Reliability Test



    Our products have passed 1000 hours cold and hot shock test,1000 hours double 85 test,1000 hours high temperature aging test,Committed to providing more reliable heat conduction solutions for automobile, communication, security and other industries.
