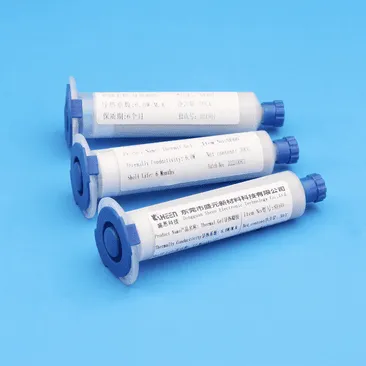

    SE40 Thermal Gel 4.0W/mK

    Use Range:
    SE40 thermally conductive gel is a soft one-component silicone-based thermally conductive gap-filling material with high thermal conductivity, low interfacial thermal resistance and good thixotropy. SE40 thermally conductive gelis an ideal material for applications with large gap tolerances. It is filled between the electronic components to be cooled and the heat sink/housing, etc., making them in close contact, reducing the thermal resistance, and quickly and effectively reducing the temperature of the electronic components, thereby extending the life of the electronic components and improving their reliability. The SE40 thermally conductive gel can be applied by hand or by dispensing equipment.

    Free Samples

    Product Description

    SE40 thermally conductive gel is a soft one-component silicone-based thermally conductive gel with high thermal conductivity, low interfacial thermal resistance and good thixotropy.SE40 thermally conductive gel is an ideal material for applications with large gap tolerances. It is filled between the electronic components to be cooled and the heat sink/housing, etc., making them in close contact, reducing the thermal resistance, and quickly and effectively reducing the temperature of the electronic components, thereby extending the life of the electronic components and improving their reliability. The SE40 thermally conductive gelcan be applied by hand or by dispensing equipment.



    Applications



    ◆  Hard disk, mobile phone
    ◆  Optical precision equipment
    ◆  laptop
    ◆  Mobile and communication equipment
    ◆  Automobile engine control equipment
    ◆  High-end industrial control and medical electronics




    Videos





    Click here!





    Product Parameters



    SE40
    Product performance Test Results Test Methods
    Colour Pink Visual
    Extrusion speed
    (30ccEFDcartridges1”orifice  90psi)
    20g/min **
    Specific gravity 3.1g/cm3 Helium true density method
    Thermal Conductivity 4.0W/mK ASTM D5470
    Dielectric breakdown strength >200 VAC/mil ASTM D149
    Dielectric constant 5.5 ASTM D150
    Minimum interface thickness 0.09mm **
    Operating temperature -50~200 **
    Storage time 12month **
    Flame retardancy V-0 UL 94
    RoHS PASS IEC 62321
    Halogen PASS EN14582
    REACH PASS EN14372

    SE series Thermal gel
    Sheen gel series Thermal conductivity Extrusion speed Dielectric Breakdown Voltage
    SE10 1.0 W/mK 35g/min >5KV/AC/mm
    SE20 2.0 W/mK 30g/min >5KV/AC/mm
    SE30 3.0 W/mK 25g/min >5KV/AC/mm
    SE35 3.5 W/mK 25g/min >5KV/AC/mm
    SE40 4.0 W/mK 20g/min >5KV/AC/mm
    SE50 5.0 W/mK 15g/min >5KV/AC/mm
    SE60 6.0 W/mK 12g/min >5KV/AC/mm



    Customization Ability



    Our products have passed 1000 hours cold and hot shock test,1000 hours double 85 test,1000 hours high temperature aging test,Committed to providing more reliable heat conduction solutions for automobile, communication, security and other industries.
