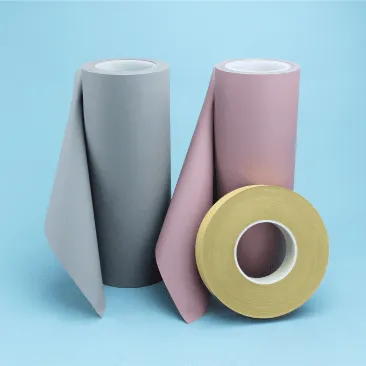

    Thermal conductive insulating pad

    Use Range:
    Thermal conductive insulating pad is made of an ultra-thin PI film coated with a thermal conductive silicone on both side. The final minimum total thickness is 0.1 mm, which acts as a heat transfer and breakdown voltage.

    Free Samples

    Product Description

    Thermal conductive insulating pad is made of an ultra-thin PI film or fiberglass film coated with a thermal conductive silicone on both side. The final minimum total thickness is 0.1 mm, which acts as a heat transfer and breakdown voltage.

    Applications



    ◆ Power
    ◆ Adapter
    ◆ Car electronics
    ◆ Communication equipment
    ◆ Motor controller
    ◆ High pressure interface
    ◆ Semiconductor optoelectronic products



    Videos



    Click here!



    Videos



    Product Parameters




    Thermal Film
    Grade ltem SC800FG SC900FG SC800-PI SC800-PI-2 SC800-PI-2-K4 SC800-PI-2-K6 SC800-PI-2-K10 SC1000FG SC2000FG Test Method
    Color Grey Brick red Yellow Yellow Pink Gray Yellow White White Visual
    Thickness(mm) 0.16~0.5 0.2-0.5 0.1±0.01 0.16±0.02 0.16±0.02 0.16±0.02 0.16±0.02 0.25-0.5 0.25-0.5 ASTM D374
    Thermal conductivity(W/m.K) 0.8 2.0  0.9 1.6 0.9 1.1 1.3 3.5 5.0 ASTM D5470
    Base material Fiberglass Fiberglass PI PI PI PI PI Fiberglass Fiberglass
    Breakdown Voltage(KV/mm) 6 5 6 6 6 6 6 4 4 ASTM D149
    Applicate temperature(℃) -50-200 ­-50-200 ­-50-200 ­-50-200 -50-200 -50-200 -50-200 ­-50-200 -50-200 TGA+DMA
    Volume Resistivity(ohm.cm) 1013 1013 1012 1012 1012 1012 1012 1011 1011 ASTM D257
    Flame rating UL94V0 UL94V0 UL94V0 UL94V0 UL94V0 UL94V0 UL94V0 UL94V0 UL94V0 UL94
    Tensile strength(MPa) 35 35 35 35 35 35 35     ASTM D412
