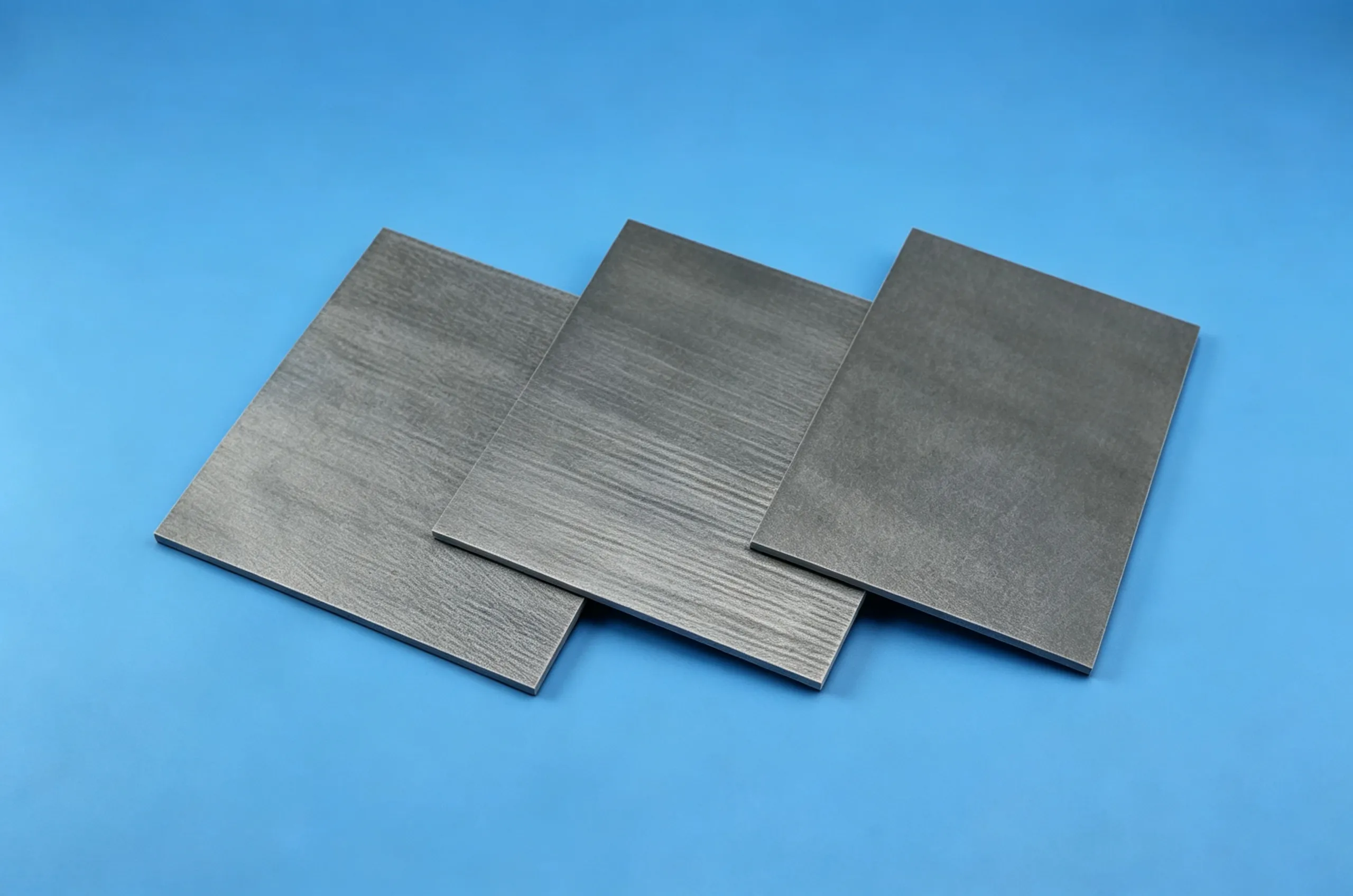

GSF110-03 Graphene Thermal Pad
Use Range:
GSF110-03 is a novel thermal interface pad featuring high thermal conductivity and low thermal resistance. Utilizing graphene as the core thermal filler and employing oriented alignment and lamination-composite technologies, it establishes vertical thermal conduction pathways that significantly enhance heat transfer efficiency. It is suitable for high-power thermal management applications, such as base stations, automotive domain controllers, and high-performance computing chips. Additionally, the pad offers high resilience, excellent conformability, and resistance to deformation.
To request a sample of our Graphene Thermal Pads or inquire about more product information, please email us at sales3@u-sheen.com or request a product sample.
Product Description
◆ Provides excellent thermal conductivity, with a thermal conductivity coefficient of up to 110 W/mK.
◆ Available in various thicknesses from 0.2 to 2.0 mm.
◆ Excellent flame retardant.
◆ Low thermal resistance ≤0.08 ℃*cm²/W, @40psi.
◆ Customizable shapes per client requirements.
◆ Compliant with RoHS, Halogen-free, REACH environmental and safety standards.
◆ Excellent flexibility, resilience, and thermal stability.
【Applications】
◆ Semiconductor testing
◆ AI chips
◆ Intelligent driving chips
◆ Optical modules
◆ Communication equipment
◆ Drones
◆ Humanoid robots
Properties
| Performance | Properties | Unit | GSF110-03 | Test Method |
| Thermal Properties | Thermal Conductivity | W/m·K | 110 | ASTM E1461 |
| Thermal Resistance (@40psi) | ℃*cm²/W | ≤0.08 | ASTM D5470 | |
| Application Temperature | ℃ | -40~150 | / | |
| Physical Properties | Rebound Rate | % | ≥90 | / |
| Tensile Strength | Mpa | ≥0.05 | ASTM D412 | |
| Color | - | Black | Visual | |
| Thickness | mm | 0.2~2.0 | ASTM D374 | |
| Density | g/cm³ | 0.3~0.7 | ASTM D792 | |
| Oil Bleeding Rate | % | ≤3 | / | |
| Flame Retardancy | Flame rating | - | V-0 | UL 94 |
【Storage & Transportation】
Storage temperature: ≤30°C
Storage humidity: ≤75%
【Packaging】
Customized packaging according to customer requirements.
