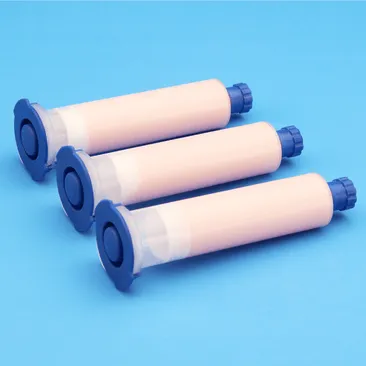

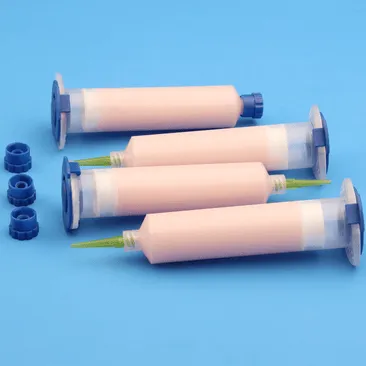

SE600AB Thermal Gel 6.0W/mK
Typical Applications:
SE600AB 6.0 W/m·K Two-Part Thermal Gel (Thermal Putty) is a silicone resin-based flexible thermal gap filler. It cures to form an elastomer that delivers efficient heat transfer and reliable shock absorption, effectively protecting electronic components. The product features low thermal impedance, minimal silicone oil seepage, and superior extrusion properties. Once cured, the elastomer retains a consistent required thickness, providing reliable shock absorption; it can replace traditional thermal pads and boasts excellent reworkability. Thickness and shape can be precisely controlled via automated dispensing equipment.
.webp)
To request a sample of our two-component (2K) Thermal Gel (Thermal Liquid Gap Filler) or inquire about more product information, please email us at tina@u-sheen.com or request a product sample.
Product Description
◆ Excellent thermal conductivity, available in options ranging from 2.0 to 8.0 W/m·K.
◆ Soft and elastic after curing, maintaining the required thickness and providing shock absorption.
◆ High electrical insulation, with dielectric strength up to 8 kV/mm.
◆ Excellent flame resistance, achieving a UL94 V-0 rating.
◆ Curing time adjustable based on temperature.
◆ Two-component structure for easy storage.
◆ Can be precisely controlled for thickness and shape using automated equipment.
◆ Complies with RoHS, Halogen-Free, and REACH environmental and safety standards.
【Applications】
◆ Hard disks, mobile phones
◆ Optical precision equipment
◆ Laptops
◆ Mobile and communication equipment
◆ Automobile engine control equipment
Properties
| SE600AB Thermal Gel Technical Specifications | |||||
|---|---|---|---|---|---|
| Properties | Unit | Component A | Component B | After mixing | Test Method |
| Color | - | White | Pink | Pink | Visual |
| Thermal Conductivity | W/m·K | - | - | 6.0 ± 0.6 | ASTM D5470 |
| Thermal Resistance(@50psi) | ℃*in²/W | ≤0.06 | ≤0.06 | - | ASTM D5470 |
| Flow Rate(@50cc,90psi) | g/min | 10±5 | - | - | |
| Minimum Interface Thickness | mm | 0.15 | 0.15 | - | - |
| Density | g/cm³ | 3.2 ± 0.2 | 3.2 ± 0.2 | 3.2 ± 0.2 | ASTM D792 |
| Breakdown Voltage (@AC) | kV | - | - | ≥10 | ASTM D149 |
| Volume Resistivity (@250V) | Ω·cm | - | - | ≥10¹² | ASTM D257 |
| Operating Temp. | ℃ | - | - | -40 ~ 150 | - |
| Tack-free time (@25℃) | min | - | - | ≥60 | |
| Full cure time (@25℃) | min | - | - | ≥2 | |
| Full cure time (@100℃) | min | - | - | ≥10 | |
| Hardness after curing | Shore 00 | - | - | 45~65 | ASTM D2240 |
| Flame Rating | - | - | - | V-0 | UL94 |
| RoHS | - | PASS | PASS | PASS | IEC 62321 |
| Halogen | - | PASS | PASS | PASS | EN 14582 |
| REACH | - | PASS | PASS | PASS | EN 14372 |
【Storage & Transportation】
Store in a well-ventilated, cool, and dry area, away from open flames.
This product is non-toxic and should be stored and transported as a non-hazardous material.
【Packaging】
● 50cc ● 400cc
【Shelf Life】
6 months
