SG560-20 Thermal Grease 2.0W/mK
Typical Applications:

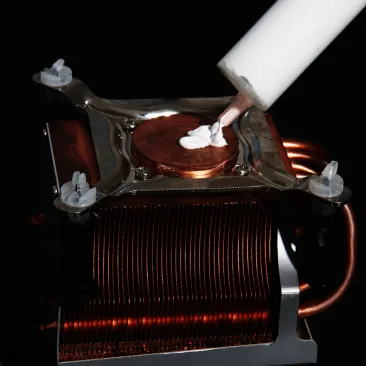

SG560-20 2.0 W/m·K thermal grease (thermal paste) are renowned for its exceptional low thermal impedance and excellent wet-out performance, effectively filling microscopic pits between heat sinks and heat-generating chips. With a minimum interface thickness as low as 0.05 mm, it achieves extremely low thermal impedance, efficiently transferring heat from the heat-generating module. The grease maintains stable form and performance even at high temperatures of up to 150℃. It can be applied manually or through screen printing.
To request a sample of our Thermal Grease (Thermal Paste) or inquire about more product information, please email us at tina@u-sheen.com or request a product sample.
Product Description
◆ Excellent thermal conductivity, available in options ranging from 1.0 to 5.0 W/m·K.
◆ Low thermal impedance, with a minimum of 0.015 ℃*in²/W at 30psi.
◆ Minimum interface thickness can reach as low as 0.05 mm.
◆ High-temperature resistance up to 150℃, with excellent dry-out resistance and no overflow.
◆ No preheating required before use.
◆ Complies with RoHS, Halogen-Free, and REACH environmental and safety standards.
【Applications】
◆ Consumer electronics (CPU, GPU, power modules)
◆ Lighting power supplies (LED drivers, ballasts)
◆ Industrial control (servo drives, frequency converters)
◆ Automotive electronics (power devices, LED headlights)
Properties
| SG560-20 Thermal Grease Technical Specifications | |||
|---|---|---|---|
| Properties | Unit | SG560-20 | Test Method |
| Color | - | White | Visual |
| Thermal Resistance (@50psi) | ℃*in²/W | ≤0.045 | ASTM D5470 |
| Thermal Conductivity | W/m·K | 2.0±0.2 | ASTM D5470 |
| Minimum Interface Thickness | mm | 0.05 | - |
| Penetration Value (@25 ℃,0.1mm) | - | 360±20 | GB/T269 |
| Density | g/cm³ | 2.85±0.2 | ASTM D792 |
| Operating Temp. | ℃ | - 40 ~ 150 | - |
| Flammabilit | - | V-0 | UL94 |
| RoHS | - | PASS | IEC 62321 |
| Halogen | - | PASS | EN 14582 |
| REACH | - | PASS | EN 14372 |
【Storage & Transportation】
Store in a well-ventilated, cool, and dry area, away from open flames.
This product is non-toxic and should be stored and transported as a non-hazardous material.
【Packaging】

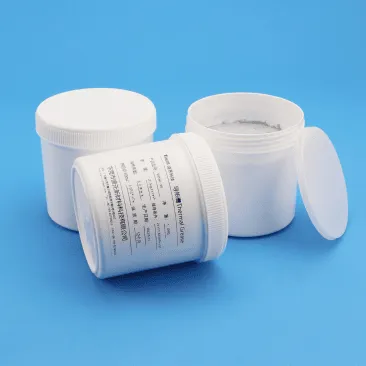

1 kg/can or Customized packaging according to customer requirements.
【Shelf Life】
12 months
