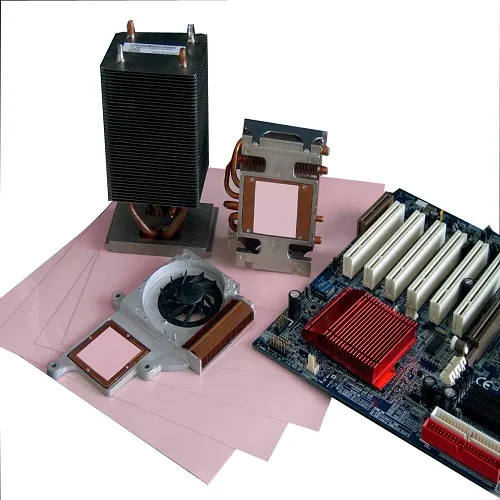

    • Phase Change Thermal pad Phase Change Thermal pad
    phase change material phase change material
    phase change material phase change material
    phase change material phase change material

    SP205A-50 Phase Change Thermal pad 5.0W/mK

    Use Range:
    SP205A-50 5.0 W/m·K Phase Change Thermal Pads are used for filling gaps between heat sinks and electronic components and transferring heat. They offer good wet-out performance and low thermal impedance, so effectively exclude air from the contact interface. The products are naturally tacky, can be die-cut into various shapes, easy to operate.

    Free Samples
    To request a sample of our Phase Change Thermal Pads or inquire about more product information, please email us at [email protected] or Click here.


    Product Description

    The SHEEN's SP Series Phase Change Thermal Pads are renowned for their distinctive characteristics, which include:
    ◆ Good thermal conductivity, with options ranging from 1.8 to 6.0 W/m·K.
    ◆ Low thermal impedance, reaching as low as 0.025 ℃*in²/W at 10psi, ensuring efficient heat transfer.
    ◆ Excellent wetting properties ensure that there is no risk of spillage after thermal cycling, making them a viable alternative to thermal grease/thermal paste.
    ◆ Self-adhesive for easy application and rework.
    ◆ Complies with RoHS, Halogen-Free, and REACH environmental and safety standards.


    【Applications】

    ◆ CPU/GPU Chips
    ◆ Capacitors
    ◆ Memory/VRAM particles
    ◆ Control boards
    ◆ Splitters
    ◆ Relays


    Properties

    Properties Unit SP205A-50 Test Method
    Color - Gray Visual
    Thermal Conductivity (W/mK) W/m·K 5.0 ASTM D5470
    Thermal Impedance (@10psi) ℃*in2/W 0.03 ASTM D5470
    Thickness (mm) mm 0.2 ASTM D751
    Phase Change Temp. (℃) ℃ 45 ~ 55 ASTM D3418
    Operating Temp. (℃) ℃ -40 ~ 125 -
    Dielectric Constant (@1MHz) - 4.0 ASTM D150
    Volume Resistivity (Ω·m) Ω·m 1.0 × 1011 ASTM D257
    RoHS - PASS IEC 62321
    Halogen - PASS EN 14582
    REACH - PASS EN 14372
