To request a sample of our Thermal Potting Compounds or inquire about more product information, please email us at tina@u-sheen.com or Click here.
◆ Automotive & EV
◆ LED lighting
◆ Industrial control
This product is non-toxic and should be stored and transported as a non-hazardous material.
Dongguan Sheen Electronic Technology Co., Ltd.
◆ Founded: 2008
◆ Team: 110 employees
◆ Facility: 5,000㎡
◆ Focus: R&D and production of functional materials
◆ Strengths: Efficient, collaborative team
◆ Achievements: Key supplier to leading global manufacturers
◆ Applications: Telecom, Automotive, Medical, Computing, Industrial , Military
◆ Certifications: ISO9001:2015, ISO14001:2015, IATF16949:2016
Product Description

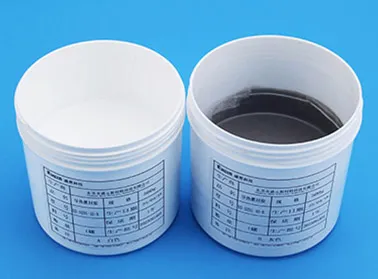

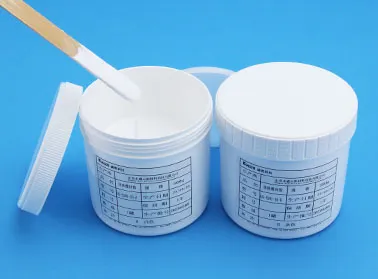

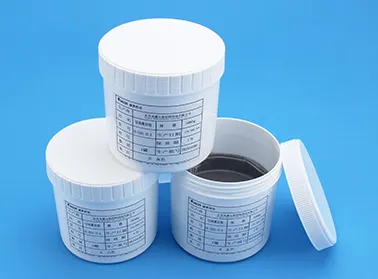

The SHEEN's US Series Thermal Potting Compounds are renowned for their distinctive characteristics, which include:
◆ Good thermal conductivity, available in options ranging from 1.0 to 3.0 W/m·K.
◆ Excellent wetting, low thermal resistance.
◆ High softness and compressibility, providing low assembly stress, ideal for delicate and sensitive electronic components.
◆ No cracking or dripping, ensuring good stability in both high and low-temperature environments.
◆ Complies with RoHS, Halogen-Free, and REACH environmental and safety standards.
◆ Good thermal conductivity, available in options ranging from 1.0 to 3.0 W/m·K.
◆ Excellent wetting, low thermal resistance.
◆ High softness and compressibility, providing low assembly stress, ideal for delicate and sensitive electronic components.
◆ No cracking or dripping, ensuring good stability in both high and low-temperature environments.
◆ Complies with RoHS, Halogen-Free, and REACH environmental and safety standards.
【Applications】
◆ Power electronics◆ Automotive & EV
◆ LED lighting
◆ Industrial control
Properties
| Properties | Unit | US-5201-10 | US-5201-15 | US-5201-20 | US-5201-25 | US-5201-20 |
|---|---|---|---|---|---|---|
| Color | - | A:White/B:Grey | A:White/B:Grey | A:White/B:Grey | A:White/B:Grey | A:White/B:Grey |
| Thermal Conductivity | W/m·K | 1.0 | 1.5 | 2.0 | 2.5 | 3.0 |
| Viscosity | cPS | 2500-3000 | 4000-4500 | A:6000-6500 B:6000-6500 |
A:8000-8500 B:8000-8500 |
A:14000-15000 B:14000-15000 |
| Mixing viscosity | cPS | 2500-3000 | 4000-4500 | 6000-6500 | 8000-8500 | 14000-15000 |
| Hardness | Shore A | 20±5 | 20±5 | 20±5 | 20±5 | 20±5 |
| Breakdown voltage | KV/mm | >10 | >10 | >10 | >10 | >10 |
| Volume resistivity | Ω·cm | >1*1012 | >1*1012 | >1*1012 | >1*1012 | >1*1012 |
| Dielectric constant | 1MHz | ≤4.5 | ≤5.0 | ≤5.5 | ≤6.5 | ≤7.0 |
【Storage & Transportation】
Store in a well-ventilated, cool, and dry place, away from open flames.This product is non-toxic and should be stored and transported as a non-hazardous material.
【Packaging】
● 30cc ● 300cc【Shelf Life】
12 monthsAbout Us
