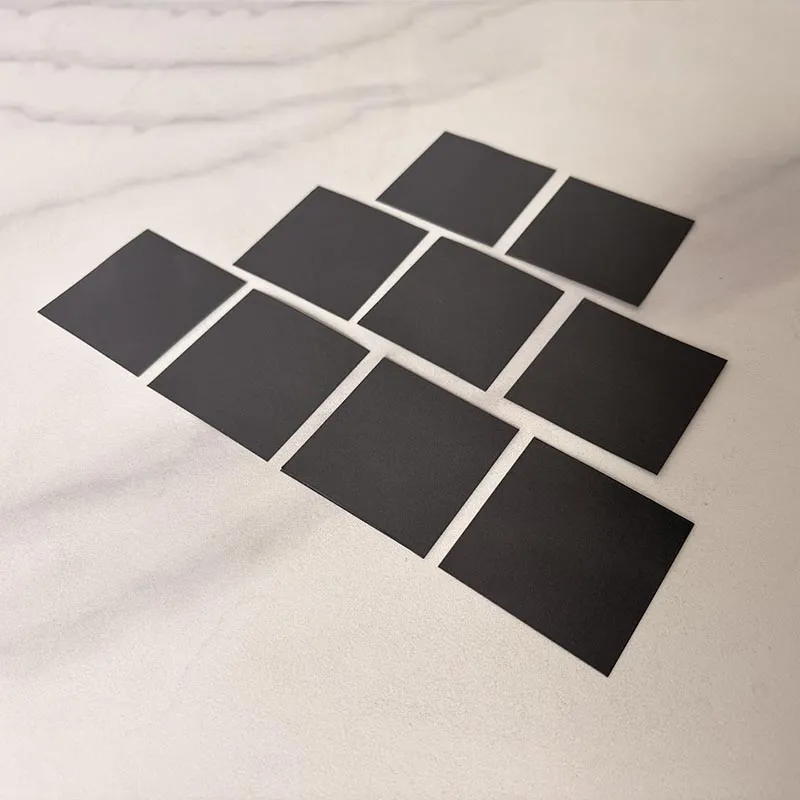

Thermal Pad SF400-AL with Graphene Aluminum Foil
Use Range:
SF400-AL: Graphene Aluminum Foil for Electrical & Thermal Conductivity, offering high-efficiency heat transfer, easy product cleaning and other superior properties.
.webp)
.webp)
.webp)
.webp)
To request a sample of our Thermal Pads or inquire about more product information, please email us at sales3@u-sheen.com or request a product sample.
◆ Vehicle navigator
◆ Communication & power equipment
◆ Graphics card, memory module
◆ LED lighting equipment
◆ LCD and plasma TV
Die-cut products：Customized
This product is non-toxic and should be stored and transported as a non-hazardous material.
Dongguan Sheen Electronic Technology Co., Ltd.
◆ Founded: 2008
◆ Team: 200 employees
◆ Facility: 20,000㎡
◆ Focus: R&D and production of functional materials
◆ Strengths: Efficient, collaborative team
◆ Achievements: Key supplier to leading global manufacturers
◆ Applications: Telecom, Automotive, Medical, Computing, Industrial , Military
◆ Certifications: ISO9001:2015, ISO14001:2015, IATF16949:2016
Product Description
SHEEN's SF400-AL Series Thermal Pads are renowned for their outstanding performance characteristics,which include:
◆ Graphene-Reinforced Aluminum Foil Gasket.
◆ Available in various thicknesses from 0.15 to 0.5 mm.
◆ Highly Efficient Thermal and Electrical Conductivity.
◆ The product is easy to clean.
◆ Customizable into die-cut shapes to meet specific design requirements.
◆ Superior flame resistance, achieving a UL94 V-0 rating.
◆ Complies with RoHS, Halogen-Free, and REACH environmental and safety standards.
◆ Graphene-Reinforced Aluminum Foil Gasket.
◆ Available in various thicknesses from 0.15 to 0.5 mm.
◆ Highly Efficient Thermal and Electrical Conductivity.
◆ The product is easy to clean.
◆ Customizable into die-cut shapes to meet specific design requirements.
◆ Superior flame resistance, achieving a UL94 V-0 rating.
◆ Complies with RoHS, Halogen-Free, and REACH environmental and safety standards.
【Applications】
◆ Vehicle navigator
◆ Communication & power equipment
◆ Graphics card, memory module
◆ LED lighting equipment
◆ LCD and plasma TV
Properties
| Properties | SF400-AL （0.15） |
SF400-AL （0.23） |
SF400-AL （0.30） |
SF400-AL （0.40） |
SF400-AL （0.50） |
Test Method |
|---|---|---|---|---|---|---|
| Color | Black | Black | Black | Black | Black | Visual |
| Thermal Conductivity （W/m·K） |
≥1.3 | ≥1.3 | ≥1.5 | ≥1.7 | ≥2.0 | ASTM D5471 |
| Thermal Resistance (@50psi，℃*in2/W) |
≤0.30 | ≤0.30 | ≤0.35 | ≤0.45 | ≤0.55 | ASTM D5470 |
| Thickness （mm） |
0.15 | 0.23 | 0.30 | 0.40 | 0.50 | ASTM D374 |
| Standard Hardness （Shore A） |
80~95 | 80~95 | 80~95 | 80~95 | 80~95 | ASTM D2240 |
| Density （g/cm3） |
2.0~2.4 | 2.0~2.4 | 2.0~2.4 | 2.0~2.4 | 2.0~2.4 | ASTM D792 |
| Operating Temp. （°C） |
-40 ~ 150 | -40~150 | -40~150 | -40~150 | -40~150 | - |
| Flame Rating | V-0 | V-0 | V-0 | V-0 | V-0 | UL94 |
| RoHS | PASS | PASS | PASS | PASS | PASS | IEC 62321 |
| Halogen | PASS | PASS | PASS | PASS | PASS | EN 14582 |
| REACH | PASS | PASS | PASS | PASS | PASS | EN 14372 |
【Product Specifications】
Roll Form：600*600mmDie-cut products：Customized
【Storage & Transportation】
Store in a well-ventilated, cool, and dry area, away from open flames.This product is non-toxic and should be stored and transported as a non-hazardous material.
【Packaging】
Customized packaging according to customer requirements.【Shelf Life】
The shelf life is 6 months.About Us
