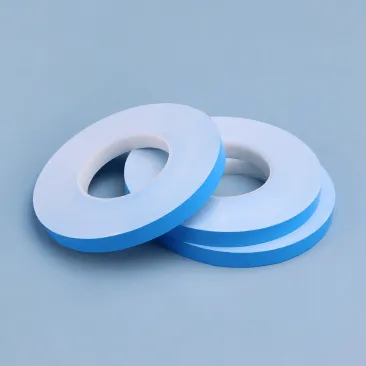

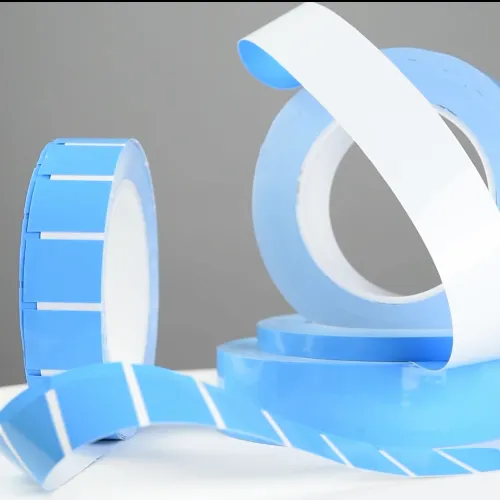

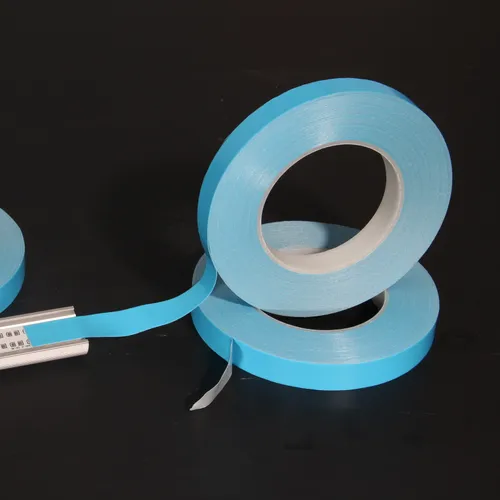

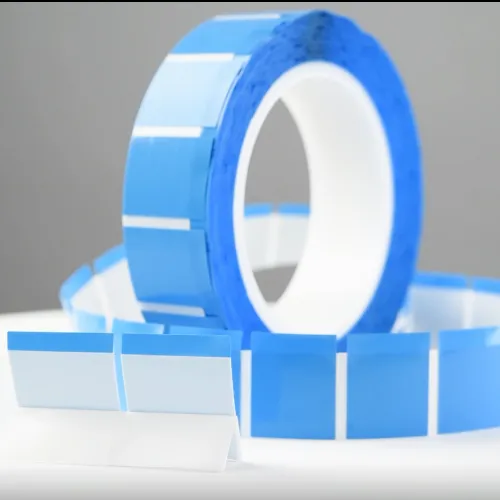

Thermal Tape Series
Use Range:
SHEEN's SA Series Thermal Conductive Tape is used for bonding and fixing heat sinks to electronic components, ensuring efficient heat transfer. The tape exhibits low thermal resistance and high adhesive strength, effectively reducing thermal impedance. It is suitable for applications such as securing LED strips to metal frames and mounting thermal interface materials in battery packs.
To request a sample of our Thermal Tape or inquire about more product information, please email us at [email protected] or request a product sample.
◆ Attaching power transistors to heat sinks
◆ Securing LED strips to metal frames
This product is non-toxic and should be stored and transported as a non-hazardous material.
SA408FG：12 months
Dongguan Sheen Electronic Technology Co., Ltd.
◆ Founded: 2008
◆ Team: 200 employees
◆ Facility: 20,000㎡
◆ Focus: R&D and production of functional materials
◆ Strengths: Efficient, collaborative team
◆ Achievements: Key supplier to leading global manufacturers
◆ Applications: Telecom, Automotive, Medical, Computing, Industrial , Military
◆ Certifications: ISO9001:2015, ISO14001:2015, IATF16949:2016
Product Description
SHEEN's SA Series Thermal Tape are renowned for their outstanding performance characteristics, which include:
◆ Acrylic-based material with double-sided adhesiveness.
◆ Low thermal impedance and high adhesive strength.
◆ Maintains good holding power at both room temperature and 80°C.
◆ Flexible Application, allows easy integration into diverse products and surfaces.
◆ Complies with RoHS, Halogen-Free, and REACH environmental and safety standards.
◆ Acrylic-based material with double-sided adhesiveness.
◆ Low thermal impedance and high adhesive strength.
◆ Maintains good holding power at both room temperature and 80°C.
◆ Flexible Application, allows easy integration into diverse products and surfaces.
◆ Complies with RoHS, Halogen-Free, and REACH environmental and safety standards.
【Applications】
◆ Bonding heat sinks to electronic components◆ Attaching power transistors to heat sinks
◆ Securing LED strips to metal frames
Properties
| Properties | Unit | SA406FG | SA408FG | Test Method |
|---|---|---|---|---|
| Color | - | White | White | Visual |
| Main Component | - | Acrylate | Acrylate | - |
| Reinforcement Carrier | - | Fiberglass | Fiberglass | - |
| Thickness | mm | 0.15±0.02 | 0.20±0.02 | ASTM D374 |
| Peel Strength | - | 1.8kgf/25mm | 1.8kgf/25mm | PSTC-3 |
| Holding Power (1.0kg loading on 25mm*25mm@25℃) |
h | >48 | >48 | PSTC-7 |
| Holding Power (0.5kg loading on 25mm*25mm@80℃) |
h | >24 | >24 | - |
| Thermal Conductivity | W/m·K | >0.4 | >0.4 | ASTM D5470 |
| Operating Temp. | ℃ | -30~130 | -30~130 | - |
| Shelf Life | months | 6 | 12 | |
| Dielectric Strength (@AC) | kV/mm | >4 | >4 | ASTM D149 |
| RoHS | - | PASS | PASS | IEC 62321 |
| Halogen | - | PASS | PASS | EN14582 |
| REACH | - | PASS | PASS | EN14372 |
【Product Specifications】
According to Customers’Requirements【Storage & Transportation】
Store in a well-ventilated, cool, and dry area, away from open flames.This product is non-toxic and should be stored and transported as a non-hazardous material.
【Packaging】
Customized packaging according to customer requirements.【Shelf Life】
SA406FG：6 monthsSA408FG：12 months
