To request a sample of our Carbon Fiber Thermal Pads or inquire about more product information, please email us at [email protected] or Click here.
◆ Chips
◆ Capacitors
◆ Memory/Graphics Memory Particles
◆ Hard Drives
◆ Control Boards
◆ Shunts
◆ Relays
Dongguan Sheen Electronic Technology Co., Ltd.
◆ Founded: 2008
◆ Team: 110 employees
◆ Facility: 5,000㎡
◆ Focus: R&D and production of functional materials
◆ Strengths: Efficient, collaborative team
◆ Achievements: Key supplier to leading global manufacturers
◆ Applications: Telecom, Automotive, Medical, Computing, Industrial , Military
◆ Certifications: ISO9001:2015, ISO14001:2015, IATF16949:2016
Product Description

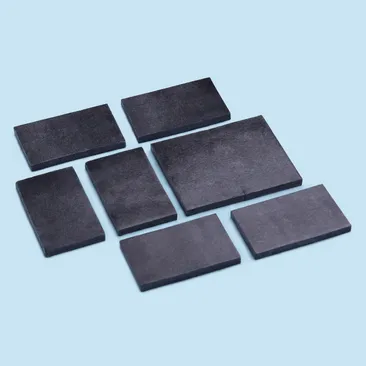

CSF series Carbon Fiber Thermal Pads are renowned for their distinctive characteristics, which include:
◆ Exceptional thermal conductivity options ranging from 15 to 45 W/mK.
◆ Available in various thicknesses from 0.5 to 20.0 mm.
◆ Features natural tackiness for easy application and rework.
◆ High compressibility, softness, and elasticity suitable for low-pressure applications.
◆ Low silicone oil bleed.
◆ Customizable shapes per client requirements.
◆ Compliant with RoHS, Halogen, REACH environmental and safety standards.
◆ Excellent flexibility, resilience, and thermal stability.
◆ Exceptional thermal conductivity options ranging from 15 to 45 W/mK.
◆ Available in various thicknesses from 0.5 to 20.0 mm.
◆ Features natural tackiness for easy application and rework.
◆ High compressibility, softness, and elasticity suitable for low-pressure applications.
◆ Low silicone oil bleed.
◆ Customizable shapes per client requirements.
◆ Compliant with RoHS, Halogen, REACH environmental and safety standards.
◆ Excellent flexibility, resilience, and thermal stability.
【Applications】
◆ 5G Base Station RRU◆ Chips
◆ Capacitors
◆ Memory/Graphics Memory Particles
◆ Hard Drives
◆ Control Boards
◆ Shunts
◆ Relays
Properties
| Properties | Unit | CSF15 | CSF20 | CSF25 | CSF30 | CSF35 | CSF40 | CSF45 | Test Method |
|---|---|---|---|---|---|---|---|---|---|
| Color | - | Black | Black | Black | Black | Black | Black | Black | Visual |
| Thermal Conductivity | W/m·K | 15.0 | 20.0 | 25.0 | 30.0 | 35.0 | 40.0 | 45.0 | ASTM D5470 |
| Thermal Impedance (1mm,@30psi) | ℃*in2/W | 0.11 | 0.06 | 0.06 | 0.05 | 0.045 | 0.04 | 0.036 | ASTM D5470 |
| Thickness | mm | 0.5 ~ 20.0 | 0.5 ~ 20.0 | 0.5 ~ 20.0 | 0.5 ~ 20.0 | 0.5 ~ 20.0 | 0.5 ~ 20.0 | 0.5 ~ 20.0 | ASTM D374 |
| Standard Hardness | Shore 00 | 40/60±5 | 40/60±5 | 40/60±5 | 40/60±5 | 40/60±5 | 40/60±5 | 40/60±5 | ASTM D2240 |
| Customized Hardness | Shore 00 | 40 ~ 90 | 40 ~ 90 | 40 ~ 90 | 40 ~ 90 | 40 ~ 90 | 40 ~ 90 | 40 ~ 90 | ASTM D2240 |
| Elongation | % | 40 | 30 | 30 | 20 | 10 | 10 | 10 | ASTM D412 |
| Tensile Strength | psi | 30 | 30 | 30 | 30 | 30 | 30 | 30 | ASTM D412 |
| Density | g/cm3 | 2.8 | 2.9 | 2.9 | 2.9 | 3.1 | 3.1 | 3.1 | ASTM D792 |
| Dielectric Strength (@AC) | V/mm | 100 | 100 | 100 | 100 | 100 | 100 | 100 | ASTM D149 |
| Operating Temp. | ℃ | - 50 ~ 160 | - 50 ~ 160 | - 50 ~ 160 | - 50 ~ 160 | - 50 ~ 160 | - 50 ~ 160 | - 50 ~ 160 | ASTM D1329 |
| RoHS | - | PASS | PASS | PASS | PASS | PASS | PASS | PASS | IEC 62321 |
| Halogen | - | PASS | PASS | PASS | PASS | PASS | PASS | PASS | EN 14582 |
| REACH | - | PASS | PASS | PASS | PASS | PASS | PASS | PASS | EN 14372 |
