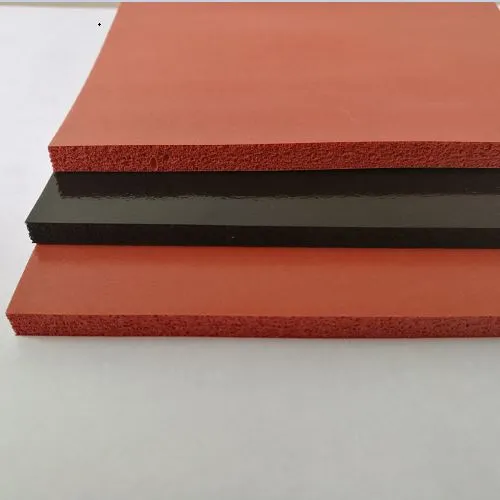

SA700-200 Silicone Foam
Use Range:
SA700-200 is a highly compressible, ultrasoft silicone foam. The combination of low weight and softness makes it an ideal choice where low closure force and sealing are critical. The patented chemistry and cell structure provide a long term performance advantage.
.webp)
To request a sample of our Silicone Foam or inquire about more product information, please email us at sales3@u-sheen.com or request a product sample.
◆ Sealing and thermal insulation between the battery pack cover and the enclosure.
◆ Outdoor communication/power cabinets: Waterproof sealing strips. They must withstand long-term exposure to sunlight, rain, and temperature fluctuations without degradation in sealing force.
◆ Fire sealing inside charging piles.
This product is non-toxic and should be stored and transported as a non-hazardous material.
Dongguan Sheen Electronic Technology Co., Ltd.
◆ Founded: 2008
◆ Team: 200 employees
◆ Facility: 20,000㎡
◆ Focus: R&D and production of functional materials
◆ Strengths: Efficient, collaborative team
◆ Achievements: Key supplier to leading global manufacturers
◆ Applications: Telecom, Automotive, Medical, Computing, Industrial , Military
◆ Certifications: ISO9001:2015, ISO14001:2015, IATF16949:2016
Product Description
SA700 series Silicone Foam is renowned for their distinctive characteristics, which include:
◆ Environmentally Friendly
◆ New Energy Battery Pack：nter-cell cushioning and insulating pads, upper and lower housing sealing strips. High compression resistance is required to prevent battery cell expansion, and they must be flame-retardant and aging resistant.
◆ Exceptional Thermal Insulation: Low thermal conductivity, effectively preventing heat transfer
◆ Excellent Compression Resilience: Delivers superior long-term sealing performance with resistance to compression set.
◆ Environmentally Friendly
◆ New Energy Battery Pack：nter-cell cushioning and insulating pads, upper and lower housing sealing strips. High compression resistance is required to prevent battery cell expansion, and they must be flame-retardant and aging resistant.
◆ Exceptional Thermal Insulation: Low thermal conductivity, effectively preventing heat transfer
◆ Excellent Compression Resilience: Delivers superior long-term sealing performance with resistance to compression set.
【Applications】
◆ Thermal insulation and fire barrier between modules within the battery pack.◆ Sealing and thermal insulation between the battery pack cover and the enclosure.
◆ Outdoor communication/power cabinets: Waterproof sealing strips. They must withstand long-term exposure to sunlight, rain, and temperature fluctuations without degradation in sealing force.
◆ Fire sealing inside charging piles.
Properties
| Properties | SA700-200 | Test Method |
|---|---|---|
| Color | White, Black | Visual |
| Density (kg/m3) | 200±20 | ASTM D3574-95 |
| Thickness (mm) | 1.0~10.0 | - |
| Compression Set (%) | <5 | ASTM D3574-95 Test D @ 158°F |
| Compression Force Deflection (kPa) | 1-17 | ASTM D3574 |
| Tensile Strength (kPa) | 126 | ASTM D3574-95 Test E |
| Tear Strength（N/mm） | 2.5 | ASTM D3574-95 Test E |
| Thermal Conductivity (W/m·K) | ≤0.2 | ASTM D5470 |
| Breakdown Voltage（ Kv) | ≥8 | ASTM D149 |
| Flame Rating | V-0 | UL 94 |
| Electrical Insulation | >1 × 1017Ω·cm | ASTM D412 |
【Product Specifications】
Customized per customer requirements【Storage & Transportation】
Store in a well-ventilated, cool, and dry area, away from open flames.This product is non-toxic and should be stored and transported as a non-hazardous material.
【Packaging】
Customized packaging according to customer requirements.【Shelf Life】
The shelf life is 12 months.About Us
