Thermal Grease Series
Typical Applications:

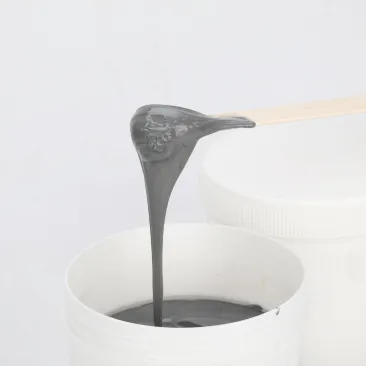

SG560 Series thermal grease are renowned for their exceptional low thermal impedance and excellent wet-out performance, effectively filling microscopic pits between heat sinks and heat-generating chips. With a minimum interface thickness as low as 0.05 mm, it achieves extremely low thermal impedance, efficiently transferring heat from the heat-generating module. The grease maintains stable form and performance even at high temperatures of up to 150℃. It can be applied manually or through screen printing.
To request a sample of our Thermal Grease (Thermal Paste) or inquire about more product information, please email us at tina@u-sheen.com or request a product sample.
Product Description
◆ Excellent thermal conductivity, available in options ranging from 1.0 to 5.0 W/m·K.
◆ Low thermal impedance, with a minimum of 0.015 ℃*in²/W at 30psi.
◆ Minimum interface thickness can reach as low as 0.05 mm.
◆ High-temperature resistance up to 150℃, with excellent dry-out resistance and no overflow.
◆ No preheating required before use.
◆ Complies with RoHS, Halogen-Free, and REACH environmental and safety standards.
【Applications】
◆ Consumer electronics (CPU, GPU, power modules)
◆ Lighting power supplies (LED drivers, ballasts)
◆ Industrial control (servo drives, frequency converters)
◆ Automotive electronics (power devices, LED headlights)
Properties
| SG560 Thermal Grease Technical Specifications | ||||
|---|---|---|---|---|
| Properties | Color | Thermal Resistance(@50psi) | Thermal Conductivity | Minimum Interface Thickness |
| Unit | - | ℃*in²/W | W/m·K | mm |
| SG560-10 | White | ≤0.15 | 1.0±0.1 | 0.06 |
| SG560-20 | White/Gray | ≤0.045 | 2.0±0.2 | 0.05 |
| SG560-30 | Gray | ≤0.03 | 3.0±0.3 | 0.05 |
| SG560-40 | Gray | ≤0.02 | 4.0±0.4 | 0.05 |
| SG560-50 | Gray | ≤0.016 | 5.0±0.5 | 0.05 |
| Test Method | Visual | ASTM D5470 | ASTM D5470 | - |
【Storage & Transportation】
Store in a well-ventilated, cool, and dry area, away from open flames.
This product is non-toxic and should be stored and transported as a non-hazardous material.
【Packaging】
1 kg/can or Customized packaging according to customer requirements.
【Shelf Life】
12 months
About Us
Dongguan Sheen Electronic Technology Co., Ltd.
◆ Founded: 2008
◆ Team: 200 employees
◆ Facility: 20,000㎡
◆ Focus: R&D and production of functional materials
◆ Strengths: Efficient, collaborative team
◆ Achievements: Key supplier to leading global manufacturers
◆ Applications: Telecom, Automotive, Medical, Computing, Industrial , Military
◆ Certifications: ISO9001:2015, ISO14001:2015, IATF16949:2016
Partners
Certifications
Videos
For more details, please click on the following website.
https://www.youtube.com/watch?v=58VgIFZp-Wc
FAQ About Thermal Grease
1. What is thermal grease and how does it improve heat transfer?
Thermal grease is a thermal interface material used to fill microscopic surface irregularities and air gaps between a heat-generating component and a heat sink. The SG560 Series provides excellent wet-out performance and can achieve a minimum interface thickness as low as 0.05 mm, helping create a thin thermal path with low thermal impedance.
2. What is the thermal conductivity of SG560 Series thermal grease?
The SG560 Series offers thermal conductivity grades from 1.0 to 5.0 W/m·K. Available grades include SG560-10, SG560-20, SG560-30, SG560-40, and SG560-50. The corresponding thermal resistance at 50 psi ranges from ≤0.15 to ≤0.016 °C·in²/W, allowing engineers to select a grade according to their thermal performance requirements.
3. What is the minimum interface thickness of SG560 thermal grease?
The SG560 Series can achieve a minimum interface thickness of 0.05 mm for most grades, while SG560-10 can reach 0.06 mm. This ultra-thin interface helps minimize the thermal path between the heat source and heat sink and is particularly useful for applications where limited interface thickness and low thermal impedance are important.
4. Can SG560 thermal grease be applied by automated manufacturing processes?

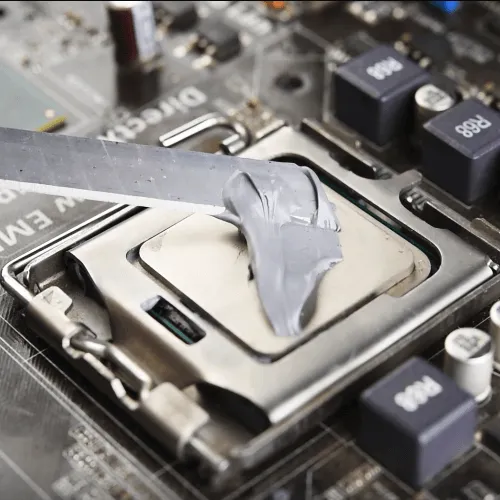

Yes. SG560 thermal grease can be applied manually or through screen printing. Its good wet-out performance allows the grease to spread across mating surfaces and fill microscopic surface irregularities. This makes it suitable for both development-stage applications and production processes requiring controlled material application.
5. Can SG560 thermal grease withstand high operating temperatures?
Yes. SG560 Series thermal grease is designed to maintain stable form and performance at temperatures up to 150°C. It also provides good dry-out resistance and does not overflow under the specified operating conditions. The series complies with RoHS, Halogen-Free, and REACH requirements.
