Partner With a Premier Silicone Foam Manufacturer Today

A single bad batch from the wrong silicone foam manufacturer can stall production, fry components, and blow deadlines fast.

Sheen Technology’s engineering team states on its official site that “tight density control and verified UL compliance are essential for electronics reliability.”

In a market where delays cost money, the right partner keeps lines moving, risks low, and products dependable.



Key Points for a Premier Silicone Foam Manufacturer

  ➔ Proven ISO 9001 Quality Controls ensure consistent foaming, curing, and die-cutting that meet IPC and ASTM standards.

  ➔ Unmatched Temperature Resistance and Density offer stable compression set, thermal interface support, and insulation in harsh environments.

  ➔ RoHS, REACH, and UL 94 Compliance guarantee flame retardancy and safe electronics integration.

  ➔ Streamlined Molding and Die-Cutting Services reduce waste and improve part fit for PCBs, connectors, and battery packs.

  ➔ Custom Gaskets, Roll Stock, and Two-Part Systems accelerate prototyping, EMI shielding, and vibration isolation for rapid time-to-market.



85% Of OEMs Trust A Premier Silicone Foam Manufacturer



Tight specs, fast turnarounds, and zero drama—that’s what OEM teams want. A dependable silicone foam manufacturer keeps products stable under heat, pressure, and audits, while still hitting cost targets and timelines.

Proven ISO 9001 Quality Controls

Core system built on quality management and ISO certification



Process layer

• Incoming checks → material ID, batch trace
• In-line process control → foaming ratio, cure profile
• Final quality assurance → compression set, peel, die-cut accuracy

Standards alignment

• IPC, ASTM mapped into manufacturing standards
• Documented SOPs enforce a systematic approach

Output confidence

• Consistent cell structure drives performance reliability

As shown in the figure, Sheen researchers discovered that the cell sizes of standard silicone foam products on the market were inconsistent and unevenly distributed. Through their improvements, a marked trend toward smaller cell sizes was achieved: the maximum cell size was reduced from 925 µm to just 533 µm. This significantly enhances product reliability in practical applications.

Unmatched Temperature Resistance and Density

Short take: stable foam beats flaky parts.



What matters in a silicone foam manufacturer:

• thermal stability across wide cycles
• tight material density windows
• solid insulation properties



Data snapshot from a Sheen Technology line:

Properties	SA700-200	SA700-260	SA700-300	SA700-350	SA700-400	SA700-450	SA700-500	SA700-900	Test Method
Color	White, Black	Grey, Black	Grey, Black	Black	Grey, Black	Grey, Black	Grey	Grey	Visual
Density (kg/m³)	200±20	260±26	300±30	350±35	350±35	450±45	500±50	950±95	ASTM D3574-95
Thickness (mm)	1.0~10.0	1.0~10.0	1.0~10.0	1.0~10.0	1.0~10.0	1.0~10.0	1.0~10.0	1.0~10.0	-
Compression Set (%)	<5	<5	<5	<5	<5	<5	-		ASTM D3574-95 Test D @ 158°F
Compression Force Deflection (kPa)	1-17	7-48	40-97	110-140	110-140	140-180	148-180	＞900	ASTM D3574
Tensile Strength (kPa)	126	180	168	300	260	350	-	1.8 MPa	ASTM D3574-95 Test E
Tear Strength（N/mm）	2.5	2.8	3	3.9	3.3	5.5	-	0.5 MPa	ASTM D3574-95 Test E
Thermal Conductivity (W/m·K)	≤0.2	≤0.2	≤0.2	≤0.2	≤0.2	≤0.2	-	≤0.3	ASTM D5470
Breakdown Voltage（ Kv)	≥8	≥8	≥8	≥8	≥8	≥9	≥4	-	ASTM D149
Flame Rating	V-0	V-0	V-0	V-0	V-0	V-0	V-0	V-0	UL 94
Electrical Insulation	>1 × 1017Ω·cm	>1 × 1016Ω·cm	>1 × 1016Ω·cm	>1 × 1015Ω·cm	>1 × 1015Ω·cm	>1 × 1015Ω·cm	>1 × 1014Ω·cm	>1 × 1015Ω·cm	ASTM D412



Why it works

• balanced heat resistance + low set = steady thermal performance
• controlled pores lock in temperature range behavior and predictable physical characteristics



Sheen Technology tunes density bands so each silicone foam manufacturer run lands on spec. Need density ranges, compression set, dielectric strength, temperature resistance, and UL 94 compliance data before selecting a silicone foam? Download the product datasheets to compare silicone foam grades, PDMS foam, and custom gasket options for PCB sealing, battery pack insulation, LED modules, and EMI shielding applications.

RoHS, REACH, and UL 94 Compliance

1) Screen raw inputs for chemical restrictions and hazardous substance control

2) Verify environmental compliance vs RoHS/REACH lists

3) Test flammability rating to UL 94 targets

4) Issue product certification and trace docs



Quick hits:

• Clean bills of material safety simplify OEM audits
• Stable labeling meets shifting regulatory standards
• A reliable silicone foam manufacturer keeps files ready when customers ask, not weeks later



Sheen Technology manufacturer laboratory High-temperature silicone foam Flame Resistance Test：

Silicone foam Flame Resistance test sample	silicone foam Testing Preparation	Silicone foam flame retardancy test	Silicone foam flame retardancy test results

Test Conclusion: When the lower end of sample SA700 was exposed to the center of the burner flame for 10 seconds, no combustion occurred and no molten material dripped; therefore, the sample achieved a UL-94 V-0 flame retardancy rating.



4 Benefits Of Partnering With A Foam Manufacturer

Working with a skilled silicone foam manufacturer isn’t just about materials—it shapes speed, fit, and performance. A trusted silicone foam partner like Sheen Technology keeps production tight and results consistent.

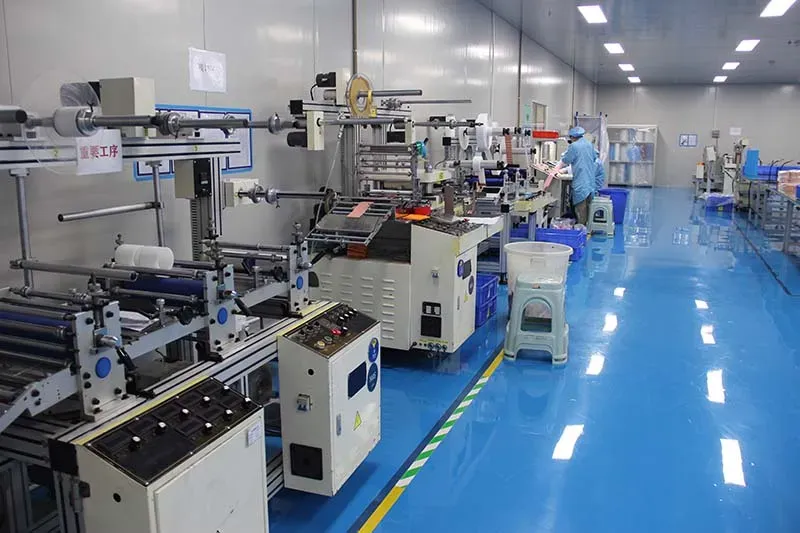

Streamlined Molding and Die-Cutting Services

A capable silicone foam manufacturer brings molding services and die-cutting under one roof, tightening manufacturing processes and trimming waste.

Core workflow:



Design intake

• CAD alignment for custom shapes
• Material selection (often silicone foam)

Fabrication phase

• Precision die-cutting
• Controlled foaming and curing

Output

• Clean edges
• Consistent tolerances





This setup boosts production efficiency and removes the usual back-and-forth between vendors. A foam supplier handling both shaping and finishing simply gets parts to fit better—no guesswork, no awkward adjustments.

Access to Custom Gaskets and Roll Stock

A flexible silicone foam supplier keeps custom gaskets and roll stock ready, which matters when designs shift mid-cycle.

• Material access：Wide material supply ensures quick swaps
• Application fit：Tailored sealing solutions for PCBs，Reliable insulation layers
• Output consistency：Repeatable cuts from specialized products



Material Type	Density (kg/m³)	Dielectric Strength (kV/mm)	Common Use
Silicone Foam A	200	20	PCB sealing
Silicone Foam B	250	22	Sensor housing
Silicone Foam C	300	25	Control units
Silicone Foam D	180	18	Light insulation

Working with Sheen Technology means less scrambling for materials and more control over performance.

Enhanced EMI Shielding and Vibration Isolation

Not every foam supplier nails EMI shielding and vibration isolation, but a specialized silicone foam manufacturer builds for both.



Performance layers:

• Electromagnetic protection，Conductive fillers reduce interference
• Mechanical stability，Shock absorption handles sudden loads，Damping solutions smooth out motion



This combo drives real performance enhancement, especially in compact electronics where space is tight, and interference risks stack up fast.

Faster Time-to-Market with Two-Part Systems

Speed matters, and a seasoned silicone foam partner uses two-part systems to keep things moving.



Development flow:

• Mix and dispense
• Controlled expansion
• Rapid cure



Short cycles push time-to-market forward without cutting corners. With assembly solutions dialed in and quick turnaround baked into the process, teams can test, tweak, and launch faster.



Electronics Assembly: Precision Die-Cut Foam

Modern electronics don’t leave room for sloppy fits or heat issues. Precision die-cut foam quietly handles sealing, insulation, and thermal balance, keeping compact devices stable, safe, and long-lasting.

Gasketing Solutions for Printed Circuit Boards (PCBs)

In tight electronics housings, PCB reliability often comes down to smart gasketing. A skilled silicone foam manufacturer shapes materials that match enclosure tolerances without over-compression.

Core functional layers:



Environmental control

• Blocks dust ingress
• Supports water resistance

Mechanical buffering

• Protects against vibration
• Maintains enclosure alignment

Electrical integrity

• Adds insulation
• Limits signal interference

Short notes that matter:

• Clean edges improve sealing
• Consistent density reduces failure risk
• Custom die-cuts simplify assembly flow



A dependable silicone foam manufacturer will fine-tune compression ratios so protection doesn’t distort delicate board layouts.

Temperature-Stable Foam for LED Modules



Thermal drift can wreck LED modules, so foam isn’t just filler—it’s part of heat management.

• Material response under load
• Compression recovery after cycles
• Stability across temperature resistance ranges



Key performance snapshot:

Property	Standard Foam	Silicone Foam	PDMS Foam	Test Condition
Thermal Stability (°C)	90	200	230	Continuous
Compression Set (%)	25	10	8	24h @ 100°C
Conductivity (W/m·K)	0.05	0.03	0.02	Lab Average
Lifespan (cycles)	5,000	15,000	20,000	Heat Cycling

Multiple quick hits:

• Better foam insulation = longer lighting life
• Stable structure protects lighting components
• Less maintenance, fewer failures



Sheen Technology often tunes these materials for consistent output in demanding LED builds.

Battery Pack Insulation with PDMS Foam

Battery safety isn’t optional. Battery packs need insulation that handles heat spikes and vibration without breaking down.



Protection hierarchy:



Thermal layer

• Controls runaway heat
• Enhances thermal management

Electrical barrier

• Boosts electrical safety
• Prevents short circuits

Structural cushion

• Reduces shock
• Adds vibration damping

Step flow in real assembly:

• Cut PDMS foam to cell geometry
• Insert between cells for cell protection
• Seal modules within energy storage housing
• Test for dielectric strength and resilience



A trusted silicone foam manufacturer ensures PDMS consistency, which directly impacts insulation lifespan. Sheen Technology keeps tolerances tight, so packs stay safe even under repeated stress.



【Request a Custom Quote】Not sure which silicone foam grade or die-cut configuration best fits your electronics assembly? Send us your density requirements, temperature range, compression set targets, dielectric strength needs, and application geometry, and our engineers can recommend the right foam solution for your project.
