Why Your Thermal Interface for Hot Pluggable Modules Is Failing

Date:2026-09-11

Thermal interface for hot-pluggable modules can look perfect on paper and still run hot in production. High conductivity alone cannot rescue poor contact, uneven compression, thick bond lines, or sneaky graphite delamination.

At scale, quirks become yield and reliability headaches. This guide flags four failure signs, shows where airflow hits its ceiling, and compares gel with grease.



Thermal Interface for Hot-Pluggable Modules

Note: This image was generated with the assistance of artificial intelligence; it is not a real photograph and is for reference only.



Key Points: Thermal Interface for Hot Pluggable Modules

  → Monitor case and junction temperatures in QSFP-DD, SFP56, CFP2, and XFP to catch uneven contact and phantom highs.

  → Verify PCM and silicone pad thickness, hardness, and compression for consistent conductivity and low thermal impedance.

  → Inspect graphite and gap filler layers for delamination or air gaps that cut heat-spreading efficiency by up to 27%.

  → Balance airflow and interface quality; beyond a certain thermal resistance, more cooling fans yield diminishing returns.



4 Signs Your TI for Hot Pluggables Is Failing

A failing thermal interface for hot pluggable modules can look like a module problem when the real trouble sits at the contact surface. These four signs help engineers catch poor heat transfer before rising temperatures start hurting reliability.

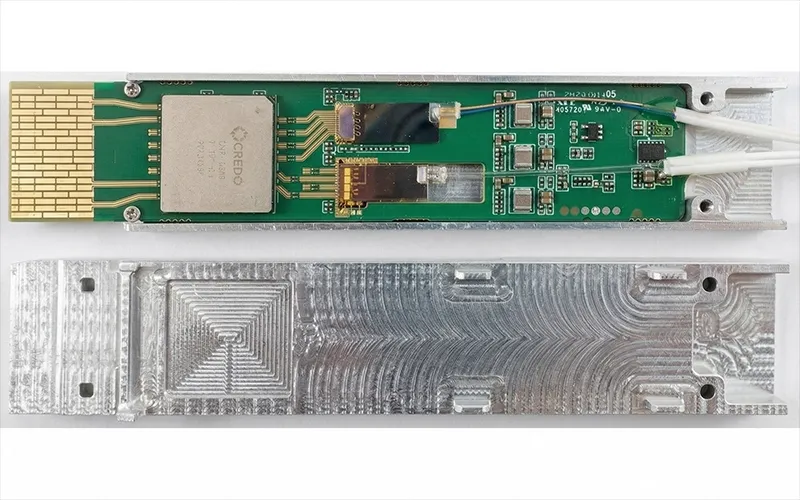

Phantom High Case Temperatures in QSFP-DD Transceivers

QSFP-DD transceiver may report a strange case temperature even while switch airflow looks fine.



Thermal Interface for Hot Pluggable Modules



Check the thermal interface:

  • Poor contact traps heat near the temperature sensor.
  • Low interface pressure limits heat dissipation.

Check the cooling assembly:

  • Gaps between the hot pluggable module and heat sink can throw thermal management off.

Sheen Technology designs thermal interface solutions for hot pluggable modules around fit, pressure, and stable module cooling, helping teams get to the root of the issue instead of chasing phantom readings.

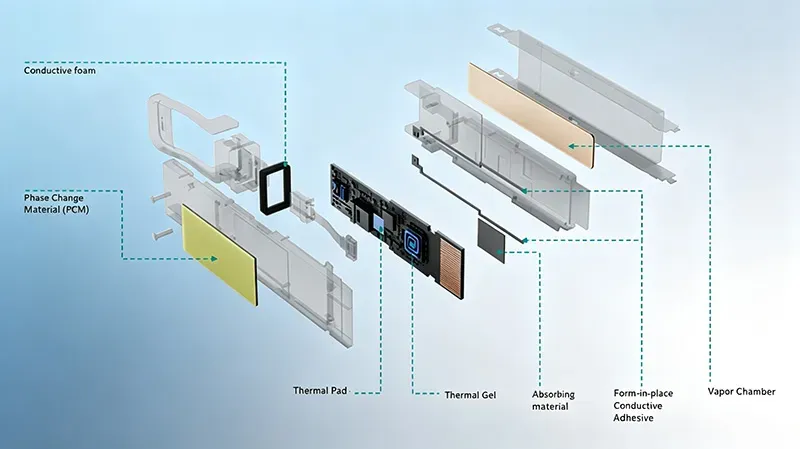

Inconsistent Thermal Conductivity on Phase Change Material Layers



Thermal Interface for Hot Pluggable Modules



When a phase change material softens, it should wet the mating surfaces consistently. Trouble starts when thickness variation or uneven composition changes thermal conductivity across the PCM layer.

That inconsistency raises local thermal resistance and weakens heat transfer. In plain terms, the interface material works well in one spot and poorly in another. A properly specified thermal interface for hot pluggable modules should maintain controlled thickness and dependable surface contact.

Elevated Thermal Impedance After Compression Molding of Silicone Pads

A molded silicone pad can pass basic material checks yet still deliver disappointing thermal performance.

Molding conditions

  • Excess compression may alter the elastomer pad.
  • Uneven curing can cause material deformation.

Installation behavior

  • Thickness changes affect interface pressure.
  • Poor pressure raises thermal impedance.

Sheen Technology can align pad design and compression molding controls with the actual mechanical stack-up, giving the thermal interface a better shot at repeatable cooling.

Noticeable Junction Temperature Rise from Die Cutting Defects

Watch the pad geometry closely. Die cutting problems such as edge burrs, tears, or dimensional shifts can shrink the useful contact area of a thermal interface material.

  • Inspect cut edges for a manufacturing defect.
  • Confirm alignment over the semiconductor die.
  • Compare junction temperature after assembly.

For SFP56, CFP2, and XFP designs, thermal interface for hot pluggable modules performance depends on clean cuts and full contact. Small defects can create a surprisingly big thermal penalty.



Interface Delamination — How Much Efficiency You Really Lose

thermal interface for hot pluggable modules has a tough job: it must move heat reliably despite repeated insertion, removal, pressure changes, and long operating hours. Small gaps can throw a wrench in thermal management, especially at high power. The practical concern is not just material conductivity; contact quality, aging, compliance chemistry, and available airflow all shape real cooling performance.

Impact of Graphite Sheet Delamination on Heat Dissipation Efficiency

A delaminated graphite sheet loses close contact with the housing or heat sink. That gap traps low-conductivity air, so lateral heat dissipation falls and local temperatures rise.

Bonded surface

  • thermal interface for hot pluggable modules spreads heat across the available area.

Partial delamination

  • Air pockets interrupt heat paths and reduce thermal efficiency.
  • Repeated cycling of hot pluggable modules can worsen weak adhesion.

Severe separation

  • The thermal interface material no longer transfers heat across its intended contact area, and added fan speed may offer little help.

A 27% efficiency loss should therefore be treated as a measured system result rather than a universal graphite constant.

How RoHS Compliance Materials Influence Thermal Resistance

RoHS compliance and other environmental regulations restrict certain substances, but compliance alone does not set thermal resistance. What matters is how replacement formulations perform after assembly and aging.



Interface caseConductivity (W/m·K)Thickness (mm)Contact resistance (cm²·K/W)Relative heat-transfer efficiency
Baseline bond12.00.200.18100%
RoHS candidate A10.50.200.2194%
RoHS candidate B8.00.250.2986%
Partial separation10.50.200.4473%
Poor contact8.00.300.5865%



These are engineering comparison values, not universal material specifications. In materials science, thickness, hardness, conductivity, and adhesion should be tested together because interface failure can dominate heat transfer. A thermal interface for hot pluggable modules also needs cycling tests to catch real-world contact changes.

Airflow Cooling Capacity Limits in Cloud Server Blades

More airflow helps until the main bottleneck sits inside the interface. At that point, cranking up the fans adds noise and power while producing smaller temperature gains.

Cloud server cooling path

  • Module-to-interface contact:High resistance limits conduction before air can help.
  • Interface-to-heat sink path:A sound thermal interface for hot pluggable modules keeps this path efficient.
  • Forced convection:Higher velocity raises cooling capacity, but gains taper as interface resistance dominates.

Dense server blades

  • Restricted flow paths increase pressure loss.
  • Neighboring devices heat incoming air, tightening the thermal margin.

That is why interface quality and fan capacity need to be evaluated as one thermal system, not as separate fixes.



Comparing Thermal Gel vs. Grease for Hot Modules

Choosing a thermal interface for hot pluggable modules means balancing heat transfer, mechanical pressure, manufacturing control, and service life. For hot modules, small interface details can make a pretty big difference.

Thermal Gel Gap Filler

Gap filler gel suits a thermal interface for hot pluggable modules when connector height, board shape, or assembly tolerance creates changing gaps, since its high compliance can provide useful stress relief without squeezing delicate hardware too hard. It is forgiving stuff.



Thermal Gel Gap Filler



Material behavior

  • Controlled viscosity and rheology help putty stay where applied.
  • Suitable thermal conductivity moves heat toward the module housing or heat sink.

Manufacturing

  • Automated dispensing can control volume across many hot pluggable modules.

For telecom and enterprise hardware, Sheen Technology can help match thermal interface material properties to gap range, heat load, and assembly needs.

Thermal Grease

Thermal grease works differently: strong wetting fills microscopic surface defects, enabling low interface impedance when the bond line thickness stays thin. That can cut thermal resistance nicely.



Thermal Grease



Interface factorSilicone pad (pre-formed)Thermal GelThermal greaseDesign target
Conductivity (W/m·K)1–151–121–5Higher helps — within the budget arithmetic
Compression / mountingNeeds defined pressure10–40%, self-compliant<10%, minimal pressureLimit module load
ApplicationPlaced, no dispensingDispensed, automatableStencil / screen / printMatch the production line
Rework / servicePeel and replaceWipe and re-dispenseClean and re-applyValidate by test
Chief risksThickness tolerance, pad-in-gap mismatchDispense volume controlPump-out, dry-out, oil migrationScreen per Section 5



Values are illustrative engineering ranges, not product specifications.

  • For a thermal interface for hot pluggable modules, verify actual thermal resistance under operating pressure.
  • Test repeated insertion and removal because pump-out may push grease away from hot spots.
  • Check silicone oil migration and long-term dry-out, especially around connectors.

In short, a thermal interface for hot pluggable modules using grease can achieve very thin interfaces, but thermal gel gap filler often handles variable hot-module gaps with less mechanical fuss.
